HEPX200 Schnabel Car
Test and Inspect
[design & fabricate]
[deliver]
[application]
[Home Page]

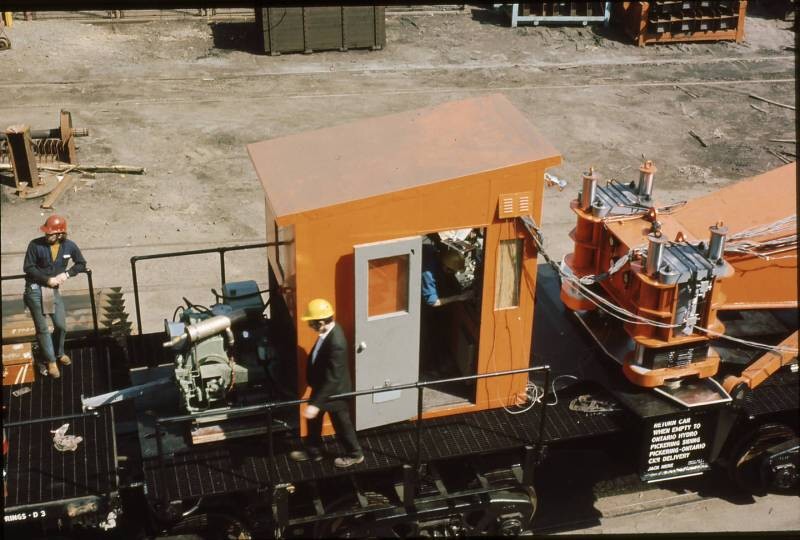

d1.schnabel under test, diesel electric generator and hydraulic pump open for maintenance

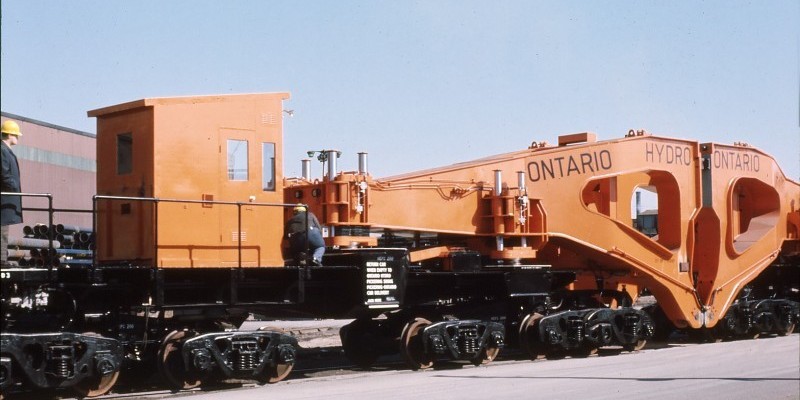

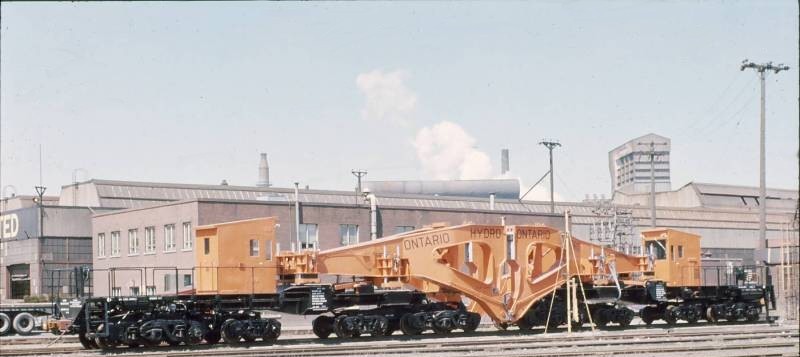

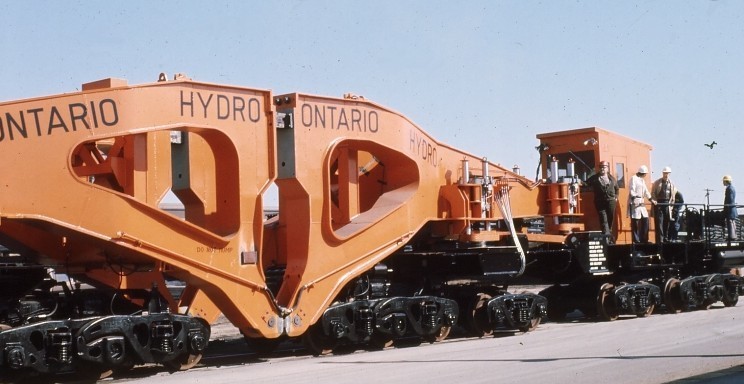

d2.schnabel under test, 290T side beams installed

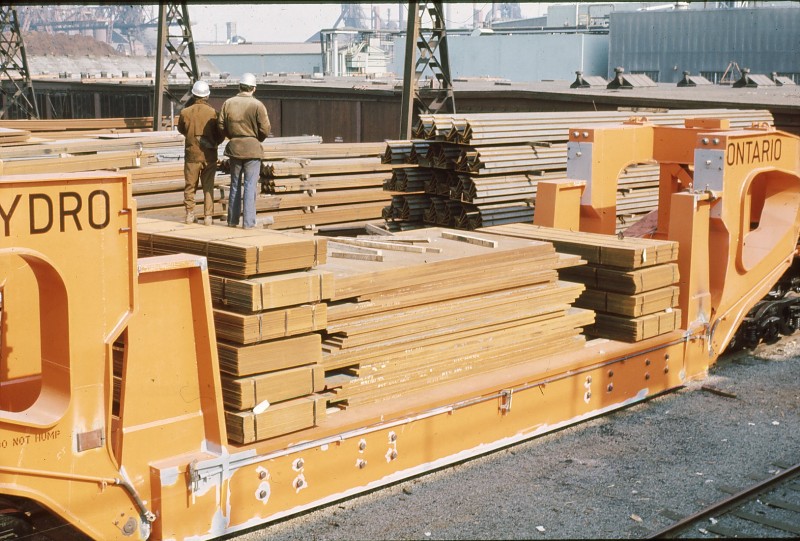

d3.schnabel under test, 520T loaded and monitored by strain gages
d4.schnabel AAR configuration audit for plate C and as built characteristics
d5.schnabel functional tests of hydraulics and fittings
d6.schnabel functional tests of bearings and slides

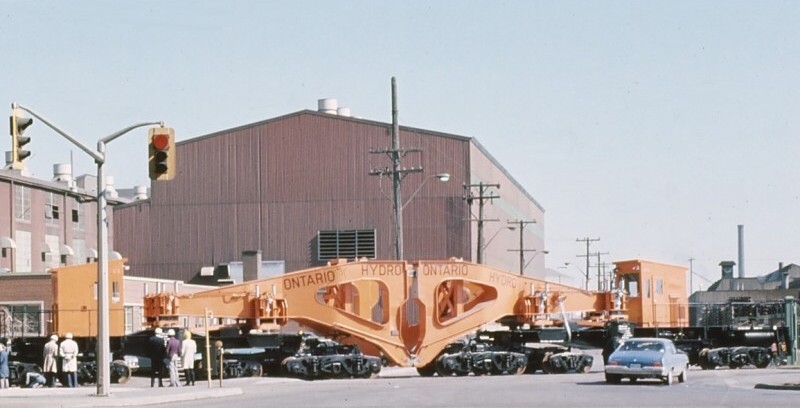

d7.schnabel car first exposure off NSC property
d8.Ontario Hydro inspection to CSA Z299 with complete audit trail of every weld and heat treatment
